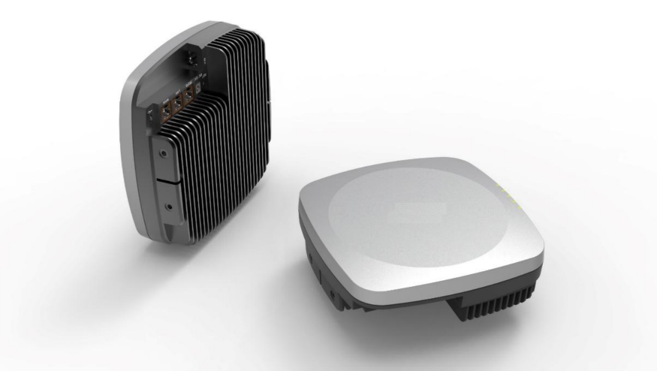

Integrated Indoor 5G Small Cell for Private Network Integrators
vkScell is an integrated indoor 5G small cell designed for private network integrators who need compact, project-ready radio access equipment for indoor coverage and localized capacity. It is suitable for small-area private 5G deployments where installation space, power consumption, and deployment simplicity are important.
- Product type: Integrated indoor 5G small cell / pico / femto base station
- Typical use: Indoor private network coverage and capacity enhancement
- Target users: Private network integrators, system integrators, industrial network project teams
- Core network: Optional embedded core configuration, depending on project requirements
- Interfaces: Standard interfaces and network integration options subject to project confirmation
- Customization: Frequency band, power level, capacity, and management features to be confirmed per deployment
Who It Is For
vkScell is intended for integrators building indoor private 5G networks in environments where a compact, integrated base station is preferred over a larger distributed system. It is especially relevant for projects that require localized wireless coverage, controlled access, and simplified on-site deployment.
- Private 5G network integrators
- Industrial automation and smart factory project teams
- Enterprise campus network integrators
- Lab, testbed, and demonstration network builders
- System integrators requiring an indoor pico/femto base station for dedicated coverage
Key Selection Factors for Integrators
- Frequency band compatibility: Confirm supported 5G NR bands according to the target country, spectrum allocation, and project license conditions.
- Output power and indoor coverage target: Select the appropriate configuration based on building structure, room layout, wall penetration, and expected service area.
- User capacity and traffic profile: Evaluate expected concurrent users, uplink/downlink requirements, and service types before final configuration.
- Embedded core option: For compact private network projects, an embedded core may simplify deployment. For larger systems, integration with an external core network may be preferred.
- Standard interfaces: Confirm interface requirements for backhaul, synchronization, core network connection, and management integration.
- Network management: Check available monitoring, configuration, alarm, and maintenance functions according to the integrator’s operational model.
- Delivery and customization: Hardware configuration, software features, frequency support, and delivery schedule should be confirmed on a project-by-project basis.
Typical Deployment Scenarios
- Smart factories: Indoor wireless connectivity for production areas, testing zones, equipment rooms, and localized automation scenarios.
- Enterprise buildings: Dedicated indoor 5G coverage for offices, operation centers, laboratories, or restricted-access facilities.
- Warehouses and logistics sites: Localized 5G access for handheld terminals, cameras, sensors, AGVs, or other connected devices, subject to coverage planning.
- Labs and pilot networks: Compact base station equipment for private 5G testing, application validation, demos, and integration projects.
- Indoor campus areas: Small-area dedicated 5G coverage where a low-power integrated base station is more suitable than a macro or outdoor unit.
FAQ
1. Is vkScell a pico or femto base station?
vkScell is an integrated indoor 5G small cell that can be positioned for pico/femto-style private 5G deployments. Final configuration depends on frequency band, output power, capacity, and project requirements.
2. Can vkScell connect to an external 5G core network?
Yes. vkScell can be integrated into a private 5G architecture with an external 5G core network. An optional embedded core configuration may also be evaluated for compact deployments.
3. What frequency bands does vkScell support?
Frequency band support depends on product configuration and project requirements. Please confirm the required 5G NR band, spectrum conditions, and local regulatory requirements before ordering.
4. How much indoor area can one unit cover?
Indoor coverage depends on output power, antenna configuration, building layout, wall materials, interference environment, installation height, and required service quality. Coverage planning should be performed for each project.
5. Is vkScell suitable for industrial private networks?
Yes, vkScell can be used in indoor industrial private network projects where compact 5G access equipment is required. Final suitability depends on capacity, latency, interface, frequency, and deployment requirements.
6. Can Vankom customize the product for integrator projects?
Project-based customization may be available for frequency, software features, management functions, and integration requirements. Delivery scope and lead time should be confirmed with Vankom before project commitment.
Need an Indoor 5G Small Cell for Your Private Network Project?
Contact Vankom to discuss frequency band, output power, capacity, optional embedded core configuration, interfaces, and project delivery requirements for vkScell.

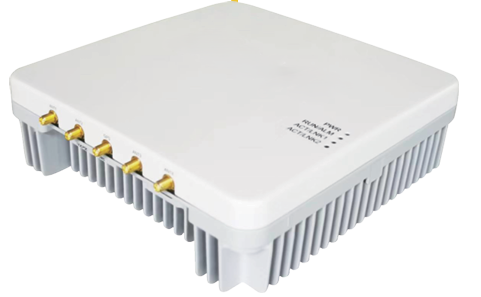

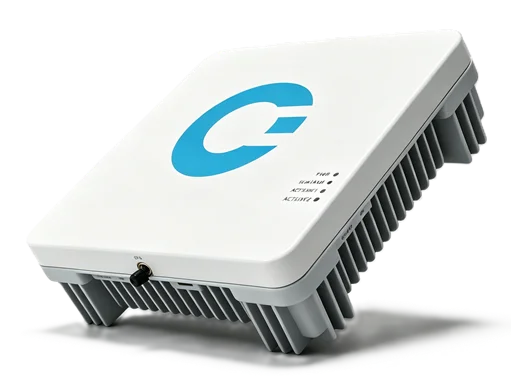

vkScell – Integrated Indoor 5G Small Cell is Vankom Technology’s indoor 5G micro gNodeB with 4×250mW transmitting power, designed for cost-effective indoor 5G deployments. Featuring compact size and low power consumption, it integrates radio, baseband and backhaul into a single unit, providing highly reliable, low-latency private network coverage for indoor scenarios such as offices, apartments, parking lots, smart factories, and underground facilities.
Product Overview
vkScell is an integrated indoor 5G small cell product that supports standard 5G NR technology and operates in TDD mode. It features high capacity and easy deployment, enabling enterprises to enhance coverage and capacity while helping simplify deployment and operation for suitable indoor projects. The product complies with 3GPP Release 15/16 standards, supporting VoNR, data, video services, and 5G LAN. Combined with macro-cell deployment, it extends 5G coverage, expands network capacity, and improves user experience.
Key Features
- 3GPP Release 15/16 Compliant – Complies with 5G NR standards for network interoperability
- All-in-One Design – Highly integrated, ultra-simplified architecture with simplified deployment capability
- SON Self-Optimization – Supports Self-Organizing Network functions for simplified deployment and maintenance
- Web Management Interface – GUI-based local and remote network management
- Built-in Omnidirectional Antenna – Optional built-in or external antenna for flexible deployment
- Flexible Backhaul – Supports any IP-based backhaul including internet, with GbE + 10GbE and SFP interfaces
- High Speed Rates – Peak rate: DL 1500Mbps / UL 250Mbps (7D2U) or DL 700Mbps / UL 740Mbps (1D3U) at 100MHz bandwidth
- Coverage Area – Indoor coverage area up to 200-300 square meters
- VoNR & 5G LAN Support – Supports VoNR voice calls, data, video services, and 5G LAN for industrial applications
Technical Specifications
| Specification | Details |
|---|---|
| Wireless Standard | 5G NR, 3GPP Release 15/16 |
| Mode | TDD |
| Frequency Band | N40 / N41 / N48 / N77 / N78 (customizable) |
| Bandwidth | 20 / 40 / 60 / 80 / 100 MHz |
| Output Power | 2 × 250 mW or 4 × 250 mW |
| Peak Rate (7D2U) | DL 1500 Mbps / UL 250 Mbps |
| Peak Rate (1D3U) | DL 700 Mbps / UL 740 Mbps |
| User Capacity | 64 traffic users / 200 RRC connected users |
| Services | VoNR, data, video, 5G LAN |
| Clock Sync | GPS/BDS, IEEE 1588v2 |
| Backhaul | RJ-45 (GbE + 10GbE), SFP 10Gbps |
| Management | TR069, OAM, remote SW upgrade, alarms, KPI report |
| Power Consumption | < 40W |
| Power Supply | DC -48V or PoE |
| Dimensions | 220 × 220 × 67 mm (H × W × D) |
| Weight | < 3 kg |
| Installation | Ceiling, wall mount, or desktop |
| Operating Temperature | 0°C to 45°C |
| Humidity | 15% to 85% RH |
Application Scenarios
vkScell integrated indoor 5G small cell is suitable for various scenarios, providing private network solutions for different industries:
- Residential Scenarios – Indoor 5G coverage for villas, apartments, and multi-story residences
- SOHO Offices – High-speed network access for small offices and home offices
- Commercial Venues – Private network services for coffee shops, restaurants, and retail stores
- Educational Institutions – Classroom, library, and campus local area coverage
- Medical Facilities – Internal networks for clinics and small hospitals
- Corporate Campuses – 5G network coverage for local areas of office buildings
Why Choose Vankom Technology
Independent R&D, Technology Leadership – Vankom Technology possesses end-to-end independent R&D capabilities for 5G products including core networks and base stations, ensuring product technological leadership and reliability.
Lightweight Architecture, Rapid Deployment – The all-in-one design simplifies network architecture, enabling rapid deployment without complex configuration, significantly shortening time-to-market.
Cost-Effective, Reduced OPEX – Compared to traditional macro base station deployments, vkScell significantly reduces initial investment and long-term operating costs.
Professional Services, Full Support – Vankom Technology provides end-to-end professional services from solution design and deployment implementation to operational support.
Frequently Asked Questions
Q: What 5G frequency bands does vkScell support?
A: vkScell-g3 supports TDD frequency bands including N40, N41, N48, N77, and N78, with bandwidth options from 20MHz to 100MHz. Other band combinations can be configured according to customer requirements.
Q: Does vkScell require additional core network equipment?
A: vkScell-g3 can work with an external core network via standard 3GPP interfaces. It also supports optional embedded vk5GC core network for standalone deployment scenarios.
Q: Does vkScell support RedCap?
A: vkScell-g3 supports VoNR voice calls, data, video services, and 5G LAN, making it suitable for both communication and industrial IoT applications.
Q: What is the coverage range of vkScell?
A: In a typical indoor environment, vkScell-g3 provides effective coverage for indoor areas. With 4×250mW output power, it can cover offices, apartments, parking lots, and factory floors. Actual coverage range depends on environmental factors and obstacles. Multiple units can be deployed for larger areas.
Q: Does vkScell support remote management?
A: Yes, vkScell provides a GUI-based Web management interface supporting local and remote network management, facilitating real-time monitoring and configuration by operations personnel.
Q: How to get technical support for vkScell?
A: Please contact the Vankom Technology sales team or visit our official website www.vankom.com for more technical support information.
