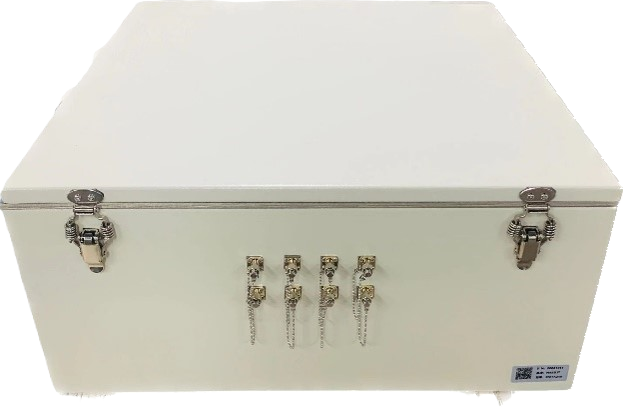

The M240 Base Station Test Unit is a high-performance device designed for 5G network testing, engineered to simplify and enhance 5G testing workflows. Built on principles of efficiency, scalability, and automation, this device can easily simulate large-scale 5G user terminal scenarios, comprehensively validating base station performance and stability. With its powerful hardware configuration, intuitive software interface, and flexible testing options, the M240 is the ideal choice for base station testing in both laboratory and field environments.
Key Features of M240
Professional-Grade Specifications
- Shielding Effectiveness: ≥70 dB high-shielding design
- UE Capacity: Up to 64 NR UEs with built-in SIM cards
- Interface Support: Mini PCI-E or m.2 modules
- Test Modes: Conducted or OTA mode
- Combiner Options: 4:1, 8:1, 16:1 configurations
- Throughput: Up to 10 Gbps per node
Detailed Technical Specifications
| Specification | Details |
|---|---|
| Shielding | ≥70 dB high-shielding enclosure |
| UE Capacity | Up to 64 NR UEs with built-in SIM cards |
| Interface | Mini PCI-E or m.2 interface modules |
| Test Modes | Conducted Mode or Over-The-Air (OTA) Mode |
| Combiner Options | 4:1, 8:1, 16:1 combiners |
| Throughput | Up to 10 Gbps per node |
| Scalability | Multiple device cascading supported |
Why Choose M240?
1. Adaptable to Multiple Testing Environments
The M240 supports both Conducted Mode and Over-The-Air (OTA) Mode, adapting to various testing environments from laboratories to field deployments. This flexibility makes the M240 the ideal testing tool for all stages of 5G base station development and deployment.
2. Flexible RF Port Configuration
With support for 4:1, 8:1, and 16:1 combiners, the M240 offers flexible RF port configuration to optimize testing resource utilization. Users can select the most suitable configuration based on specific testing requirements.
3. Ultra-High Throughput Support
With up to 10 Gbps throughput per node, the M240 meets the high-bandwidth, low-latency testing requirements of 5G networks. It can realistically simulate high-speed data transmission scenarios in 5G networks, ensuring accurate base station performance validation.
4. Powerful Scalability
The M240 supports cascading of multiple devices, enabling greater capacity through flexible combinations to meet ultra-large-scale testing scenario requirements. Whether testing 64 UEs or thousands of UEs, the M240 can handle it through cascading.
Applicable Testing Scenarios
- 5G Base Station Functional Validation: Verify gNodeB basic functions and protocol compliance
- Capacity Testing: Evaluate base station performance under 64-UE high load
- Throughput Testing: Validate 10 Gbps high-speed data transmission capability
- Stability Testing: Long-duration operation reliability verification
- Field Testing: OTA mode supports real wireless environment testing
- Regression Testing: Automated testing to ensure software update quality
M240 vs. M208: How to Choose?
| Feature | M240 | M208 |
|---|---|---|
| UE Capacity | 64 UEs | 8 UEs |
| Throughput | 10 Gbps | 5 Gbps |
| Best For | Large-scale capacity testing | Small-scale functional testing |
| Scalability | Cascading supported | Standalone device |
| Combiner Options | 4/8/16:1 | 4/8:1 |
Frequently Asked Questions (FAQ)
Which 5G frequency bands does M240 support?
The M240 supports 5G NR (Sub-6 GHz) frequency bands with optional LTE/UMTS support to meet different market and application scenario requirements.
Can M240 work with MUTA software?
Yes, the M240 is specifically designed to work with the MUTA Integrated Control System. Through MUTA software, you can achieve comprehensive control of the M240, including test case management, automated execution, and detailed report generation.
How does cascading multiple M240s work?
The M240 supports cascading through standard network interfaces. Through MUTA software, you can configure multiple M240s as a unified testing system, achieving large-scale testing scenarios with hundreds or even thousands of UEs.
What is the deployment timeline for M240?
The M240 features a plug-and-play design with a standard deployment cycle of 3-5 business days. Vankom provides complete installation guidance and technical support to ensure rapid deployment.
Get Your M240 Base Station Tester Today
Ready to enhance your 5G base station testing capabilities? The M240 Base Station Tester will help you efficiently complete tasks from functional validation to large-scale capacity testing.
Contact Vankom Technology today for:
- Detailed M240 product specifications
- Free product demonstration and technical consultation
- Customized testing solution recommendations
- Competitive pricing and delivery schedules
Related Products: MUTA Software | M208 Base Station Tester | Chinese Version
