Integrated Outdoor 5G Base Station for Private Network Integrators
vkHcell is an integrated outdoor 5G base station designed for private network integrators who need outdoor radio access equipment for wide-area, temporary, industrial, or special-purpose 5G deployments. It is a product component that can be integrated into a private 5G network architecture according to project requirements.
- Product type: Integrated outdoor 5G base station / outdoor gNodeB / high-power pico or mini base station
- Typical use: Outdoor private 5G coverage, temporary networks, industrial sites, and special communication projects
- Target users: Private network integrators, emergency communication integrators, industrial network project teams, and OEM/ODM partners
- Core network: External 5GC connection or optional embedded vk5GC / vkIMS configuration, depending on project scope
- Radio configuration: MIMO, user capacity, mobility, and coverage parameters should be confirmed according to configuration and deployment conditions
- Customization: Frequency band, antenna, enclosure, software features, and integration support are handled project by project
Who It Is For
vkHcell is intended for system integrators that need a configurable outdoor 5G base station product for private network projects. It is suitable when the integrator wants to combine outdoor RAN equipment with its own core network, applications, devices, backhaul, or project delivery services.
- Private 5G network system integrators
- Emergency and temporary communication project integrators
- Industrial park, mining, port, and utility network project teams
- Drone communication and air-to-ground communication project teams
- OEM/ODM or channel partners requiring configurable outdoor 5G base station equipment
Key Selection Factors for Integrators
- Frequency band and regulatory fit: Confirm supported 5G NR bands according to spectrum availability and local regulatory conditions.
- Coverage target: Outdoor coverage depends on antenna height, terrain, line-of-sight conditions, interference, output power, and required service quality.
- User capacity: Active and attached user capacity should be evaluated according to traffic model, radio configuration, and project environment.
- External or embedded core: vkHcell can be evaluated with external core integration or optional embedded vk5GC / vkIMS configuration depending on project architecture.
- Backhaul and synchronization: Confirm IP backhaul, transport, synchronization, and management interface requirements before deployment.
- Outdoor installation: Review enclosure, power supply, mounting, grounding, lightning protection, antenna, and environmental requirements.
- Customization and validation: Frequency, antenna, software, and management requirements should be validated before project commitment.
Typical Deployment Scenarios
- Industrial private 5G: Outdoor 5G access for industrial parks, ports, mines, utilities, and campus perimeter areas.
- Emergency communication: Temporary or project-based 5G access for special communication scenarios, subject to spectrum and deployment planning.
- Drone and air-to-ground communication: Outdoor base station equipment for air-to-ground communication projects under specific line-of-sight and antenna conditions.
- Remote or rural coverage: Outdoor 5G coverage for targeted sites where a configurable integrated base station is preferred.
- Integrator pilot networks: Field trials, demonstrations, and private 5G project validation before wider deployment.
FAQ
1. Is vkHcell an outdoor 5G base station or a complete private network solution?
vkHcell is an integrated outdoor 5G base station product. It can be used by system integrators as part of a private 5G network project, but the full network scope depends on core network, backhaul, devices, applications, spectrum, and integration requirements.
2. Does vkHcell require an external core network?
vkHcell can connect to an external 5G core network. An optional embedded vk5GC / vkIMS configuration may also be evaluated when a compact integrated architecture is required.
3. What applications is vkHcell suitable for?
Typical applications include industrial private 5G, emergency communication, temporary private networks, drone communication, mining areas, ports, industrial parks, and remote coverage projects.
4. How many users can vkHcell support?
User capacity depends on the product configuration and network conditions. If a specific user target is required, Vankom can help confirm active users, attached users, throughput, and traffic model assumptions during project evaluation.
5. What is the coverage distance?
Coverage distance depends on terrain, antenna height, line-of-sight conditions, interference, output power, frequency band, and configuration. Air-to-ground or long-distance coverage claims should be validated under the specific deployment conditions.
6. Can Vankom customize vkHcell for integrator projects?
Project-based customization may be available for frequency band, antenna, software features, management functions, and integration requirements. Delivery scope and lead time should be confirmed before project commitment.
Need an Outdoor 5G Base Station for Your Integration Project?
Contact Vankom to discuss frequency band, MIMO configuration, capacity target, optional embedded core, antenna, outdoor installation, and project validation requirements for vkHcell.

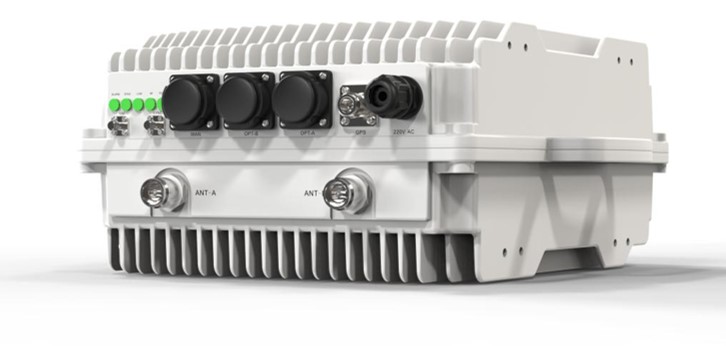

vkHcell – Integrated Outdoor 5G Base Station is Vankom Technology’s 5G outdoor integrated base station, designed for large-scale coverage scenarios. The product can be configured with optional embedded vk5GC core network and vkIMS, supporting embedded core network configuration, making it a configurable product option for special applications such as emergency communication, temporary networking, and air-to-ground communication.
Product Overview
vkHcell is an outdoor-type 5G integrated base station that supports project-specific frequency band configurations and their corresponding specification requirements. It can be equipped with customized features such as embedded core networks for special application needs according to customer requirements, meeting applications such as emergency mobile networking on board of drones. The product supports 2×2 MIMO or 4×4 MIMO configurations, can connect up to 200 active users and 400 attached users, and supports ultra-high-speed mobile scenarios of 200km/h, ensuring network connection stability in high-speed mobile environments.
Key Features
- 3GPP Release 17 Compliant – Complies with the latest 5G standards for network interoperability
- Optional Embedded Core Configuration – Can be evaluated with optional embedded 5GC and IMS according to project requirements
- Rapid Deployment – Designed for simplified deployment after project configuration and integration planning
- Project-Dependent Coverage – Air-to-ground or long-distance coverage should be validated under specific deployment conditions
- MIMO Support – Supports 2×2 MIMO or 4×4 MIMO configurations
- High Capacity Users – Supports up to 200 active users, 400 attached users
- High-Speed Mobile Support – Supports ultra-high-speed mobile scenarios (200km/h)
- Multi-Band Support – Supports common 5G bands by default, customizable configuration
- Flexible Networking – Suitable for emergency communication, temporary networking, private network coverage, and other scenarios
Technical Specifications
| Specification | Details |
|---|---|
| Wireless Standard | 5G NR, 3GPP Release 17 |
| Frequency Band Support | Supports most common 5G bands (customizable) |
| MIMO Configuration | 2×2 MIMO or 4×4 MIMO |
| Coverage Distance | Up to 20km in air-to-ground environment |
| User Capacity | Up to 200 active users, 400 attached users |
| Mobile Speed | Supports ultra-high-speed mobile scenarios of 200km/h |
| Core Network Integration | Optional embedded vk5GC + vkIMS |
| Deployment Method | Designed for simplified deployment after project configuration |
| Environment Type | Outdoor type, adaptable to various environment deployments |
| Antenna Type | Outdoor antenna configuration |
Application Scenarios
vkHcell integrated outdoor 5G base station is suitable for various outdoor and special scenarios, providing private network solutions for different industries:
- Emergency Communication – Temporary communication networks for disaster relief and emergency scenarios
- Drone Networking – Air-to-ground communication, drone inspection, and drone logistics
- Large-Scale Events – Private networks for sports events, concerts, and exhibitions
- Remote Area Coverage – Large-scale 5G coverage for rural areas, islands, and mountainous regions
- Industrial Mining Areas – Outdoor network coverage for large mines and industrial zones
- Port Terminals – 5G private network applications for ports and wharves
- Industrial Parks – Outdoor 5G coverage for large parks and industrial parks
- Transportation Hubs – 5G networks around airports, railway stations, and long-distance bus terminals
Special Application: Air-to-Ground Communication
vkHcell is optimized for air-to-ground communication scenarios, supporting drone emergency mobile networking applications. In this scenario, vkHcell can be deployed on the ground to provide stable 5G network connections for drones in the air, with a coverage distance of up to 20 kilometers. This capability makes it play a key role in the following applications:
- Drone Inspection – Communication for drone inspection of power lines, pipelines, and borders
- Emergency Rescue – Drone communication relay and material delivery navigation in disaster areas
- Logistics Delivery – Communication assurance for long-distance drone delivery
- Aerial Photography and Mapping – Real-time data transmission for large-area aerial photography and mapping
Why Choose Vankom Technology
Independent R&D and Product Integration Support – Vankom Technology possesses independent product development capabilities for 5G products including core networks and base stations, providing private network product integration options.
Optional Embedded Core Network, Flexible Configuration – vkHcell supports embedded core network configuration, providing flexible networking solutions by choosing whether to integrate 5GC and IMS based on actual requirements.
Project-Based Deployment Support – Designed to support faster project deployment after configuration, integration planning, and site validation.
Ultra-Long Coverage, Strong Adaptability – Air-to-ground or long-distance coverage should be validated under specific deployment conditions, supports ultra-high-speed mobile scenarios, adaptable to various complex environments.
Professional Services, Full Support – Vankom Technology provides end-to-end professional services from solution design and deployment implementation to operational support.
Frequently Asked Questions
Q: What 5G frequency bands does vkHcell support?
A: vkHcell supports most common 5G bands by default, which can be customized with different band configurations according to customer requirements.
Q: What does the embedded core network in vkHcell mean?
A: Embedded core network means that vkHcell has integrated 5GC core network and IMS internally, providing complete 5G network services without the need for additional core network equipment deployment.
Q: What is the coverage distance of vkHcell?
A: In an air-to-ground environment, the coverage distance of vkHcell can reach up to 20 kilometers. Actual coverage distance will be affected by terrain, obstacles, deployment height, and other factors.
Q: Does vkHcell support high-speed mobile scenarios?
A: Yes, vkHcell supports ultra-high-speed mobile scenarios up to 200km/h, ensuring network connection stability in high-speed mobile environments.
Q: How many users can vkHcell connect?
A: vkHcell supports up to 200 active users and 400 attached users, which can meet the needs of medium-scale private network applications.
Q: Is vkHcell suitable for drone applications?
A: Yes, vkHcell is optimized for air-to-ground communication scenarios and is very suitable for drone emergency mobile networking, inspection, logistics, and other applications.
Contact Us to Learn More
To learn more about vkHcell integrated outdoor 5G base station, or to obtain product quotations and technical support, please contact us through the following methods:
Vankom Technology Website: www.vankom.com
Email: info@vankom.com
Phone: +86 21 80394538
Address: Office 808, Building 1, No. 2777 Jinxiu Road, Pudong, China
